What a fuel pump actually does

The fuel pump moves the fuel needed by the engine and provides the supply at the system’s required pressure. A filter removes contaminants, a level sender measures the tank level, and pressure-control hardware regulates delivery. Those jobs can share a housing without being the same mechanism.

Bosch’s fuel-supply-module description shows this combination clearly: an electronic pump with continuous or demand-controlled conveying, integrated filtering, and possible level-sensing, pressure-control and reservoir elements. The float is part of the measurement system; it is not the pumping element.

Location is different from function

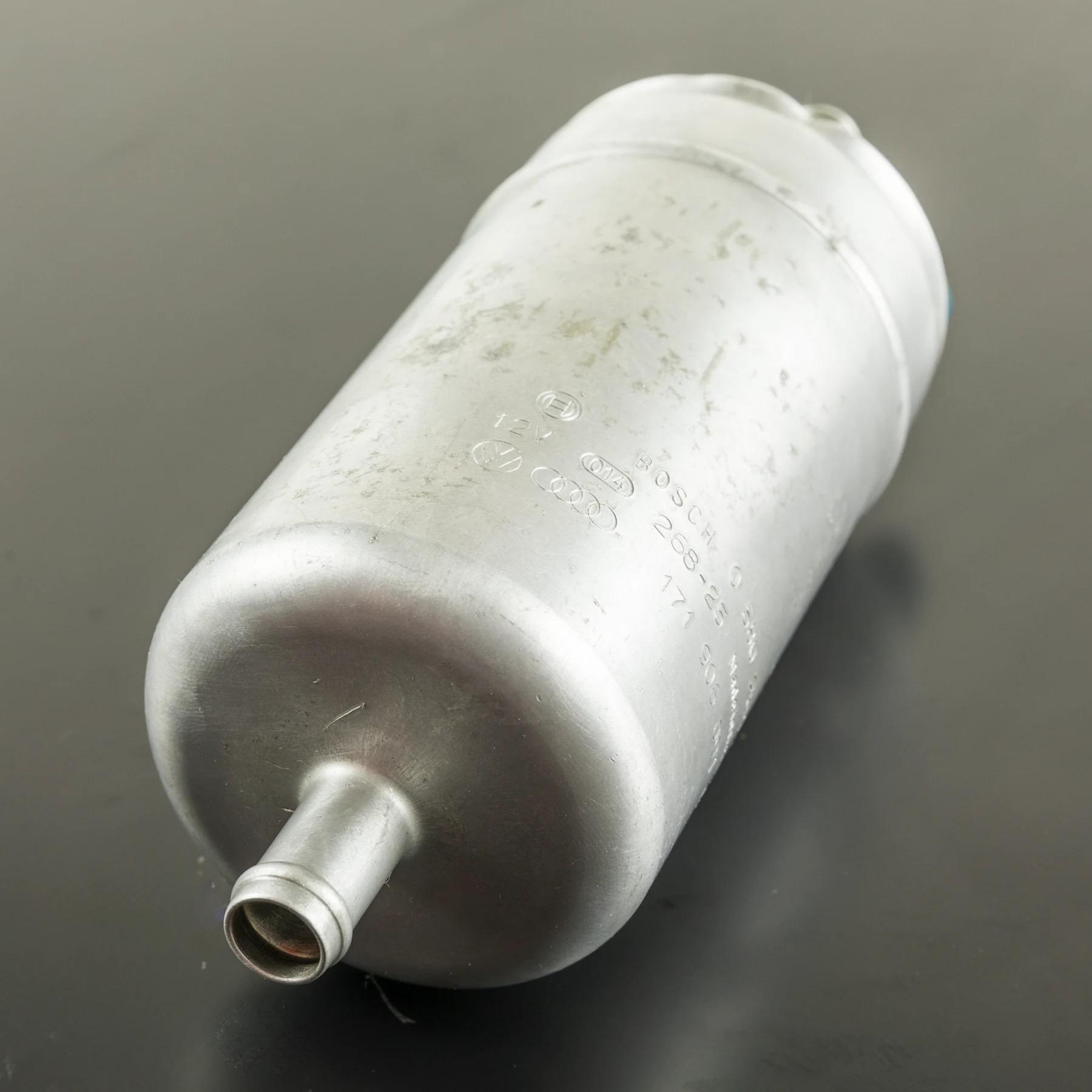

The inline unit is a different package from the module inside a tank. Seeing the outer cylinder does not supply its flow rating, pressure rating or application. Likewise, hearing a motor does not demonstrate that the fuel arriving at the engine meets its specified flow and pressure.

Direct injection separates the pressure stages

The low-pressure supply and high-pressure rail are distinct parts of a gasoline direct-injection system. The supply pump feeds a second pump, which raises pressure for the rail and injectors. Bosch’s complete-system explanation follows that sequence.

The injectors then meter and atomize the fuel delivered to them. They do not replace either pumping stage. Bosch’s high-pressure-pump page describes its rail-supply function and pressure variants. Its listed numbers belong to those designs; there is no one pressure specification for all injection systems.

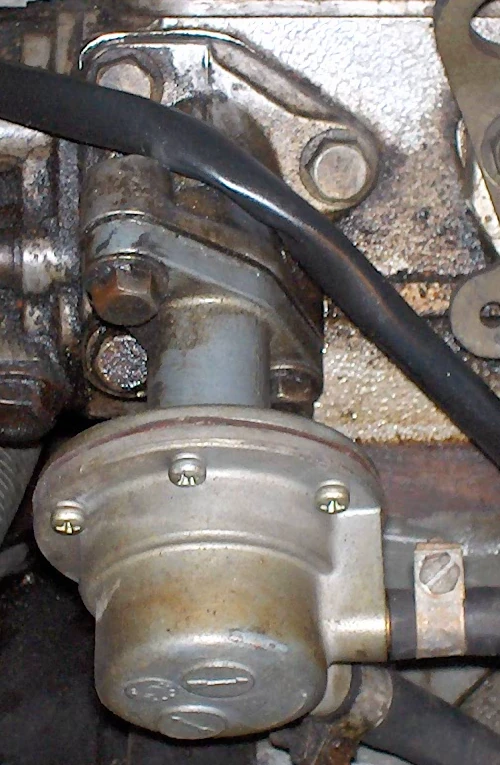

The final picture illustrates older engine-mounted hardware, rather than the motor in the tank. Package and drive arrangement can change, while the supply task remains distinct from filtration and fuel metering. A pressure complaint requires checking the actual system, including its control and supply path, rather than naming a pump from a hum or treating a filter as the pressure source.
