What an alternator actually does

Rotor, stator, rectifier and regulator roles, the battery’s separate job, and the limits of a universal 13.5–14.5-volt charging rule.

The battery stores electrical energy. A conventional alternator generates it while the engine runs, supplying electrical loads and replenishing the battery. An accessory belt drives the rotor through the alternator pulley. Those are complementary jobs, rather than two names for the same component.

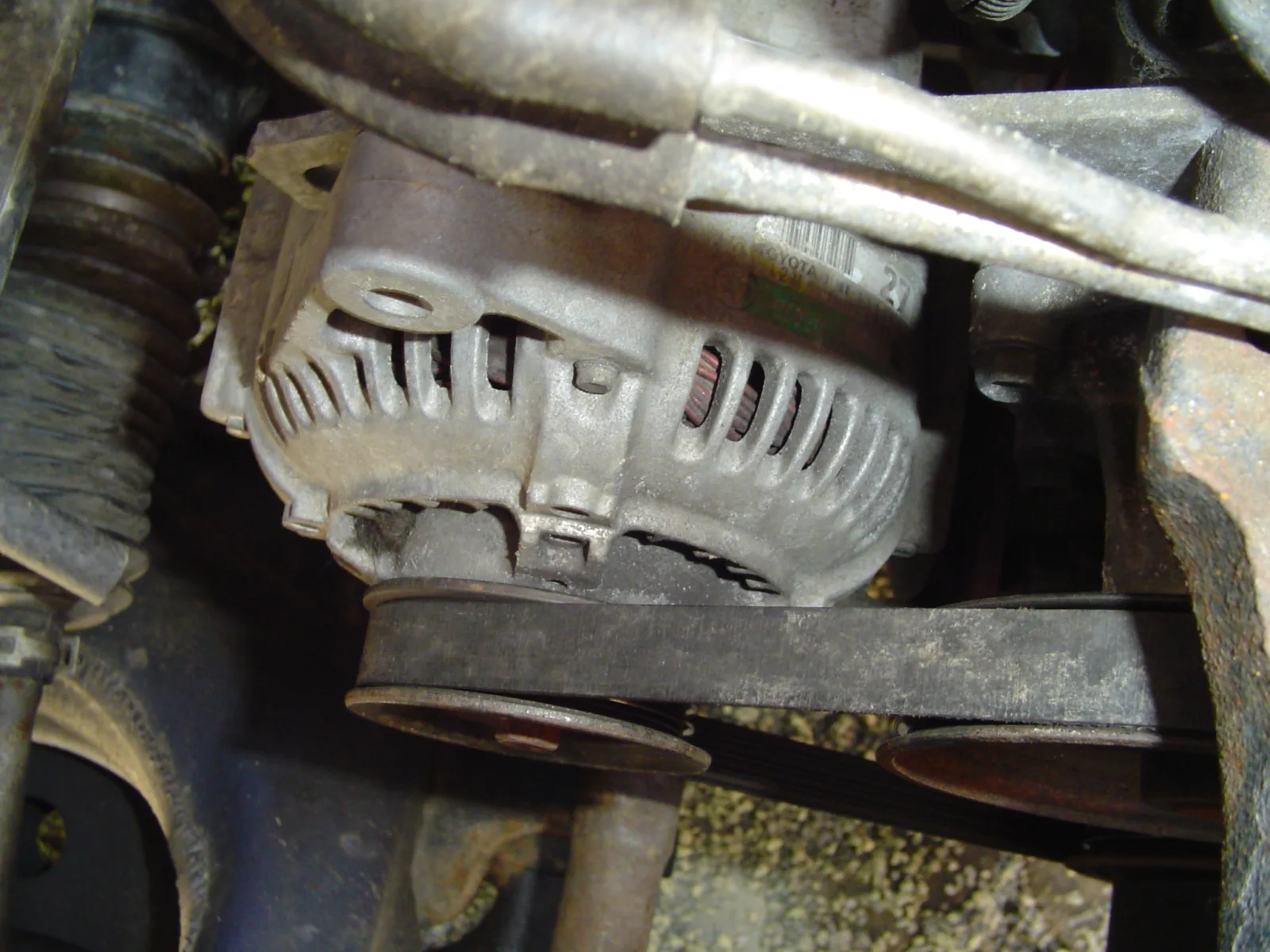

Toyota Corolla alternator in the bay, serpentine belt on the pulley and stator visible through the vents
Lichtmaschine PKW — Kolossos. CC BY-SA 3.0. Converted from JPEG to WebP. Resized from the original. Display thumbnails may crop to fit.

Inside, the rotating magnetic field induces alternating voltage in the stationary stator windings. A rectifier converts that AC output into the DC supply used by the vehicle. The B+ connection carries this supply into the charging circuit. HELLA’s alternator guide explains the induction and rectification steps.

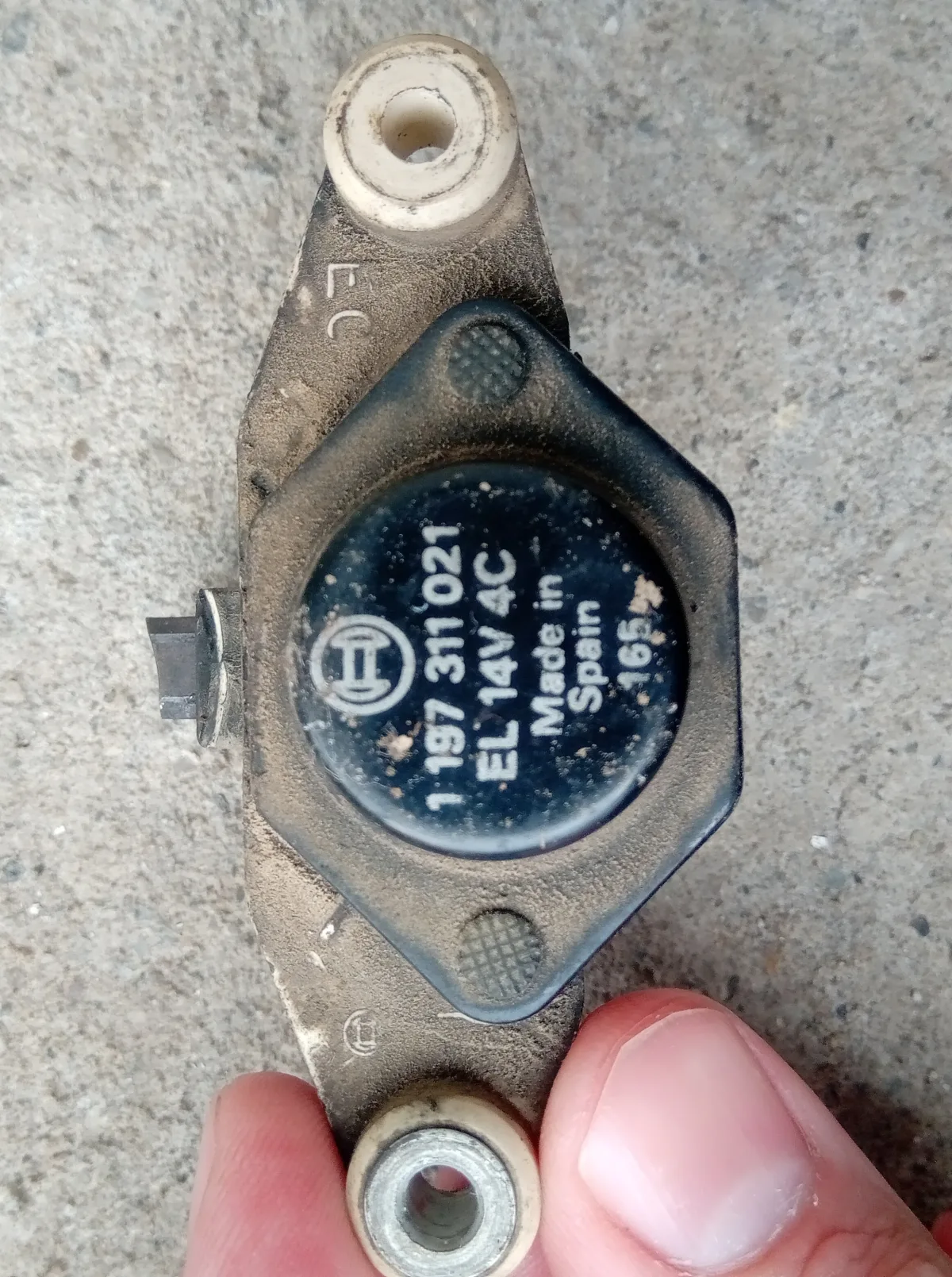

Bosch alternator voltage regulator with a worn carbon brush and 14-volt rating
Alternator voltage regulator — Milicevic01. CC BY-SA 4.0. Rotated 90 degrees, resized and converted from JPEG to WebP. Display thumbnails may crop to fit.

The regulator controls excitation

In a common field-wound alternator, brushes and slip rings supply the rotor’s field winding. Changing that field current changes output. The regulator may be integrated with the brush holder, mounted elsewhere, or operate with broader vehicle-control commands. A brush-holder photograph does not establish the arrangement used on every car.

Charging voltage must suit the installed battery and operating conditions. It is not universally held between 13.5 and 14.5 volts at all times. HELLA’s regulator guide describes regulation, battery type and communication-dependent systems. Use the vehicle’s specified test conditions and target values.

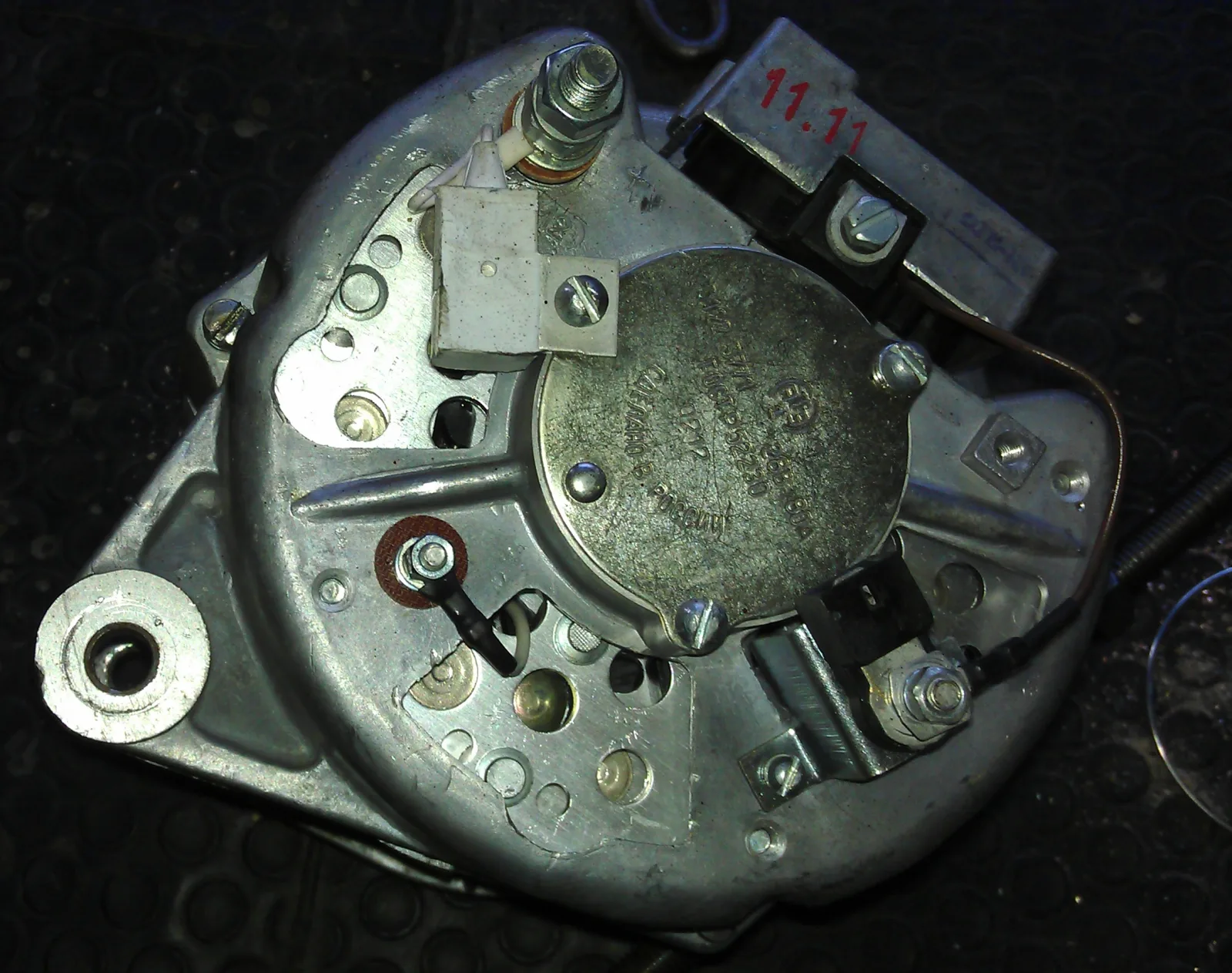

Rear of an automotive alternator with B-plus studs, wiring, and a 14-volt stamp
Automotive alternator. Terminals — Zinnsoldat. CC BY-SA 3.0. Converted from JPEG to WebP. Resized from the original. Display thumbnails may crop to fit.

A charging warning or dim lamps can result from the belt, connections, battery or an internal alternator fault. A growl does not locate the noise without inspection. HELLA’s diagnostic guidance expressly checks those external components before replacement. Disconnecting the battery with the engine running is not a charging test; the resulting voltage peaks can damage electronics.
